Tipper

Tipper
MAC CARROSERIE has the capability to manufacture both sand and stone type tipper and tipper trailers either normal type or half pipe type (u) with hydraulic tail gates option, tipper bodies can be made out of normal steel (st-37,st-52) or Hardox material.

Body
All body and gates are being supported with vertical steel 'u' type profiles considering the capacity. Side doors can be produced either fixed or movable. The rear gate is attached from the top and has the automatically locking type and/or with hydraulic tailgate. Is supported by supporting profiles.

Lifting Mechanism

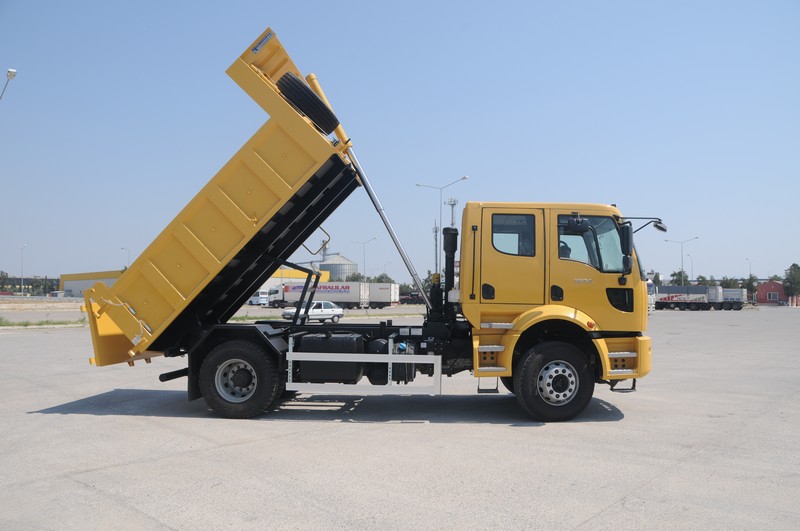

Body is being lifted from the front by telescopic type cylinder.

Hydraulic Installation
Hydraulic power is supplied by the transfer of energy from PTO to the pump. PTO is controlled from the driver cab. The oil tank has 70lt capacity. On the tank there are, 125" suction filter, and 25" return filter with ventilation, level indicator, special valve, and releasing tap. All pipes used in the installation are suitable with DIN NORMS.
